New: Machine feet - stable & flexible | 05-27-2025

AWH clamp brackets

NL The clamp connection is one of the most frequently used detachable connections in the world. Our newly developed AWH component-tested clamp already meets the latest standards and offers maximum safety and reliability. Find out how we use innovative materials and design to make everyday handling easier and increase safety when dealing with pressurized components.

After the flange connection, the clamp connection is probably the most widely used detachable connection in the world. Whether with a standard clamp seal or as an aseptic O-ring connection. They are used wherever a detachable hygienic connection is required.

The new AWH component-tested clamp already complies with the amended "AD 2000 Merkblatt A5", which came into force in 2020. Clamps with hinged hinges may only be used to a limited extent. This applies not only to use on pressure equipment, but also to pressure-retaining equipment and equipment with a safety function. In an experimental test series in accordance with EN 13445-3, we have not only proven the compressive strength, but also the fatigue strength with 1/4 million load cycles.

We have succeeded in developing a clamp with high compressive strength, a slim design and low weight. This is noticeable in everyday handling, makes work easier and creates safety when handling pressurized components.

The clamps are made of investment casting material 1.4308 (CF-8). The surfaces are mechanically polished.

Further information can be found in the detailed data sheet clamp brackets or from your customer advisor.

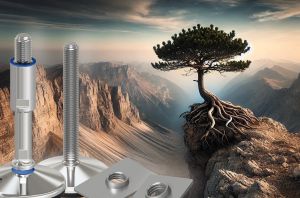

AWH is expanding its product portfolio to include high-quality machine feet made of AISI 304 stainless steel, which have been specially developed to meet the requirements of plant engineering in the food, chemical and pharmaceutical industries. The components provide a reliable base for machines, tanks and production lines - even under demanding conditions.

Reliability and versatility for industrial use

The standard machine feet have a robust design and are suitable for a wide range of industrial applications. They are characterized by their high load-bearing capacity, non-slip rubber coating and flexible adjustment options in terms of height and thread size. Thanks to their sturdy design, they are ideal for use on a wide variety of floors and offer safe machine installation with reduced noise transmission.

Hygienic design in accordance with 3-A standard (88-01)

For particularly hygiene-critical areas - such as clean rooms, laboratories or open production areas - AWH offers special hygienic machine feet with 3-A certification in accordance with standard 88-01. This design meets the strictest requirements in terms of cleanability and surface finish and thus supports compliance with legal and process-related hygiene standards.

Welding plates for additional stability

Matching weld plates in various sizes are available as a supplement. They enable the machine feet to be firmly attached to equipment, tanks or frame structures, thus providing additional safety and load distribution - especially for mobile or vibration-loaded Systems.

Flexible versions - for every requirement

The AWH machine feet are available in numerous variants:

  • Different foot diameters (60-120 mm)
  • Thread sizes from M12 to M30
  • Different heights and load limits up to 30,000 Newton

Individual designs are available on request.

Data sheet and technical Details

For a complete overview of all available variants and technical specifications and article numbers, please download the data sheet for the machine feet.
